Haida Machines
HD100LHD130LHD170LHD210LHD260LHD290LHD330LHD390LHD450LHD550LHD600LHD680LHD780LHD900LHD1100LHD1250LHD1400LHD1600LHD2000L-IHD2000L-IIHD2500LHD2800LHD3300L
Haida Machinery is a renowned name in the world of plastic injection molding. Engineered with state-of-the-art technology, Haida machines ensure optimal efficiency and reduced waste. Whether you're producing household items, automotive parts, or complex industrial components, Haida is the trusted choice for quality and durability.

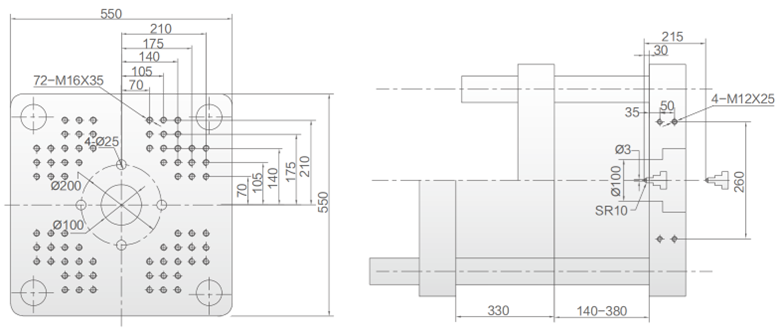

- HD100L
- A: 35 mm
- B: 38 mm
- C: 35 mm
- A: 22.8 L/D
- B: 21 L/D
- C: 22.8 L/D
- A: 154 cm3
- B: 182 cm3
- C: 154 cm3
- A: 140 g
- B: 166 g
- C: 140 g
- A: 208 Mpa
- B: 177 Mpa
- C: 208 Mpa

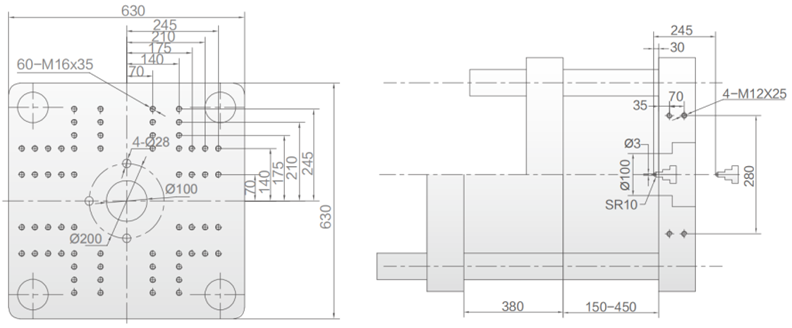

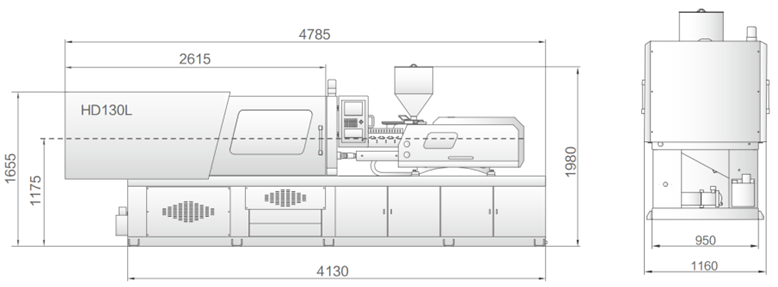

- HD130L
- A: 38 mm
- B: 40 mm
- C: 38 mm
- A: 22.1 L/D
- B: 21 L/D
- C: 22.1 L/D
- A: 199 cm3
- B: 220 cm3
- C: 199 cm3
- A: 181 g
- B: 200 g
- C: 181 g
- A: 201 Mpa
- B: 182 Mpa
- C: 201 Mpa
- HD170L
- A: 40 mm
- B: 45 mm
- C: 40 mm
- A: 23.6 L/D
- B: 21 L/D
- C: 23.6 L/D
- A: 264 cm3
- B: 334 cm3
- C: 264 cm3
- A: 240 g
- B: 304 g
- C: 240 g
- A: 228 Mpa
- B: 180 Mpa
- C: 228 Mpa

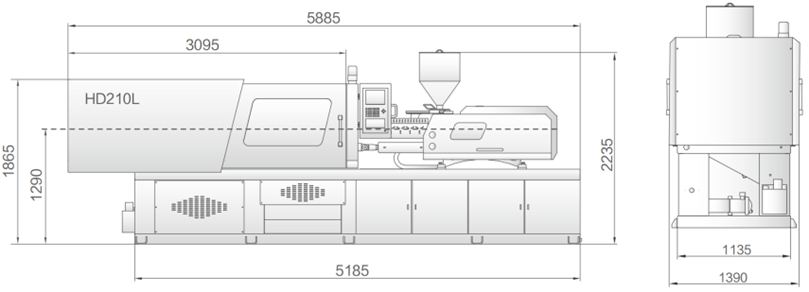

- HD210L
- A: 45 mm
- B: 50 mm
- C: 45 mm
- A: 23.3 L/D
- B: 21 L/D
- C: 23.3 L/D
- A: 366 cm3
- B: 452 cm3
- C: 366 cm3
- A: 333 g
- B: 411 g
- C: 333 g
- A: 221 Mpa
- B: 179 Mpa
- C: 221 Mpa

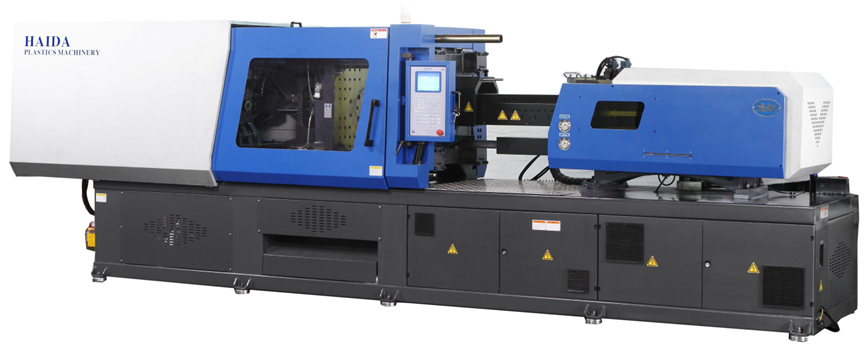

- HD260L
- A: 55 mm
- B: 60 mm
- C: 55 mm
- A: 22.9 L/D
- B: 21 L/D
- C: 22.9 L/D
- A: 606 cm3
- B: 721 cm3
- C: 606 cm3
- A: 551 g
- B: 656 g
- C: 551 g
- A: 210 Mpa
- B: 176 Mpa
- C: 210 Mpa

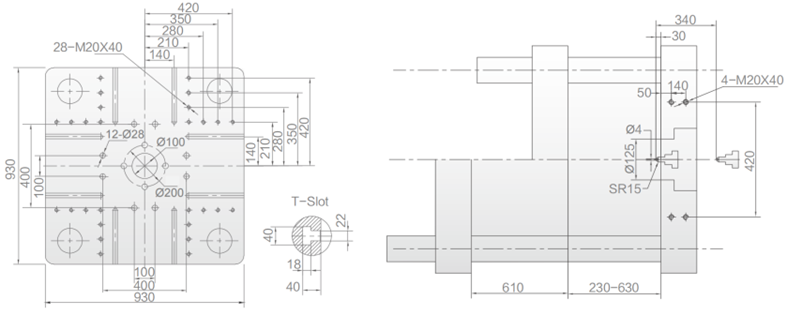

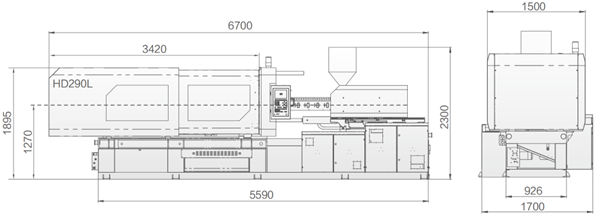

- HD290L
- A: 60 mm
- B: 65 mm
- C: 60 mm
- A: 22.8 L/D
- B: 21 L/D
- C: 22.8 L/D
- A: 792 cm3
- B: 929 cm3
- C: 792 cm3
- A: 721 g
- B: 845 g
- C: 721 g
- A: 207 Mpa
- B: 176 Mpa
- C: 207 Mpa

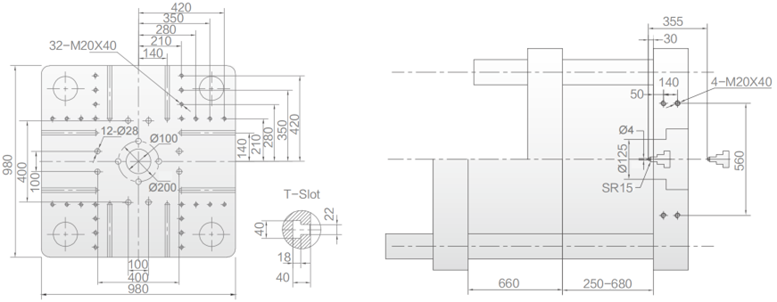

- HD330L
- A: 65 mm
- B: 70 mm
- C: 65 mm
- A: 22.6 L/D
- B: 21 L/D
- C: 22.6 L/D
- A: 996 cm3
- B: 1155 cm3
- C: 996 cm3
- A: 906 g
- B: 1051 g
- C: 906 g
- A: 203 Mpa
- B: 175 Mpa
- C: 203 Mpa

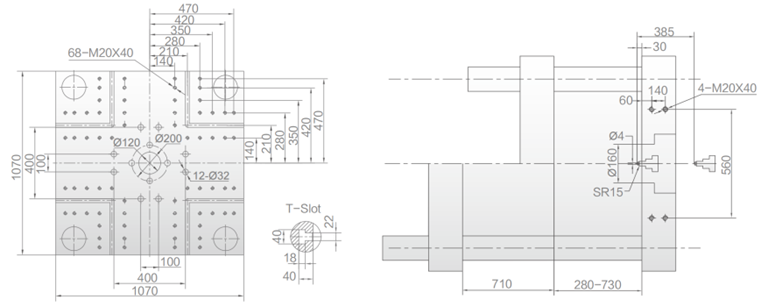

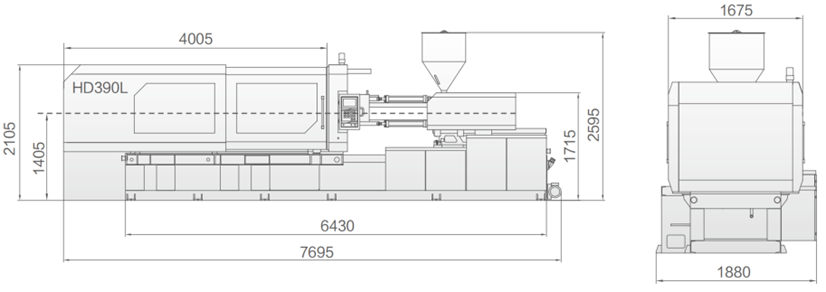

- HD390L
- A: 70 mm
- B: 75 mm
- C: 70 mm
- A: 23 L/D
- B: 21.5 L/D
- C: 23 L/D
- A: 1347 cm3
- B: 1546 cm3
- C: 1347 cm3
- A: 1226 g
- B: 1407 g
- C: 1226 g
- A: 207 Mpa
- B: 180 Mpa
- C: 207 Mpa
- HD450L
- A: 70 mm
- B: 75 mm
- C: 70 mm
- A: 22.9 L/D
- B: 21.5 L/D
- C: 22.9 L/D
- A: 1854 cm3
- B: 2110 cm3
- C: 1854 cm3
- A: 1687 g
- B: 1920 g
- C: 1687 g
- A: 186 Mpa
- B: 164 Mpa
- C: 186 Mpa
- HD550L
- A: 80 mm
- B: 85 mm
- C: 80 mm
- A: 22.8 L/D
- B: 21.5 L/D
- C: 22.8 L/D
- A: 2212 cm3
- B: 2497 cm3
- C: 2212 cm3
- A: 2013 g
- B: 2272 g
- C: 2013 g
- A: 184 Mpa
- B: 163 Mpa
- C: 184 Mpa

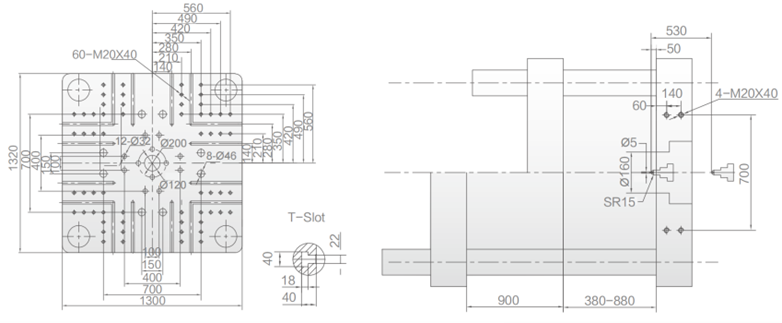

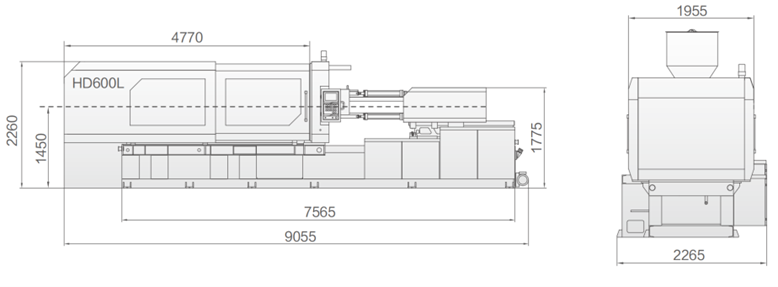

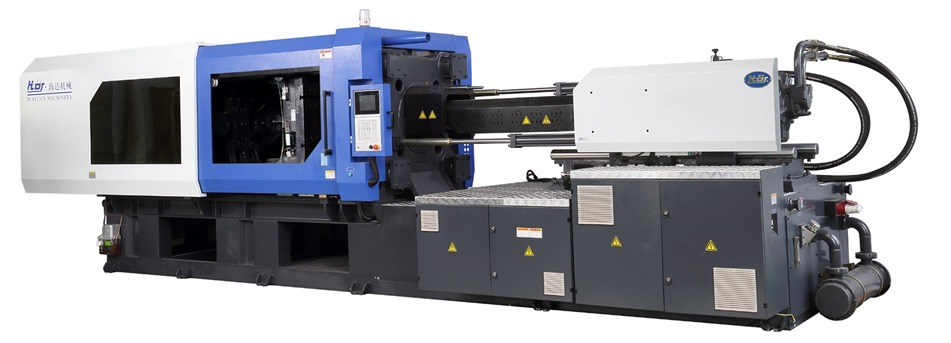

- HD600L
- A: 80 mm
- B: 85 mm
- C: 80 mm
- A: 22.8 L/D
- B: 21.5 L/D
- C: 22.8 L/D
- A: 2212 cm3
- B: 2497 cm3
- C: 2212 cm3
- A: 2013 g
- B: 2272 g
- C: 2013 g
- A: 184 Mpa
- B: 163 Mpa
- C: 184 Mpa

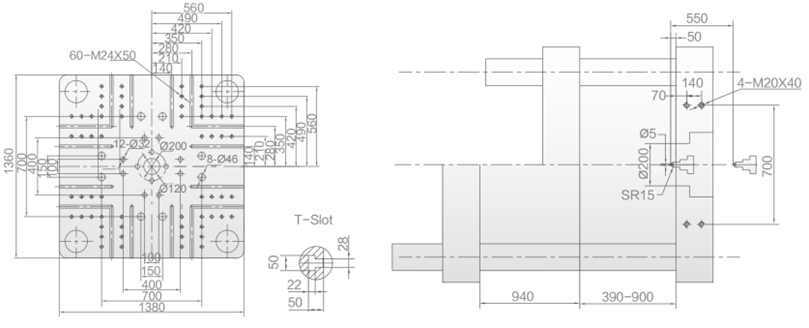

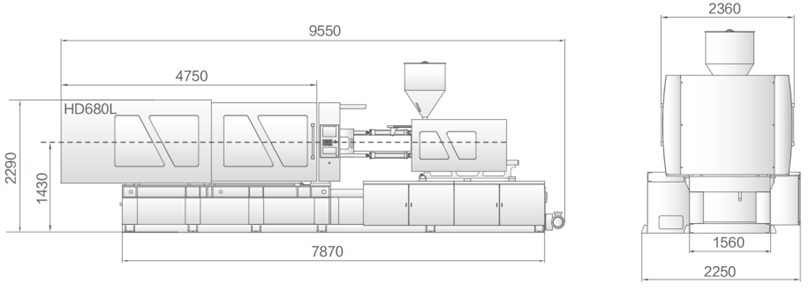

- HD680L
- A: 90 mm
- B: 95 mm
- C: 90 mm
- A: 22.7 L/D
- B: 21.5 L/D
- C: 22.7 L/D
- A: 2957 cm3
- B: 3294 cm3
- C: 2957 cm3
- A: 2691 g
- B: 3000 g
- C: 2691 g
- A: 177 Mpa
- B: 159 Mpa
- C: 177 Mpa

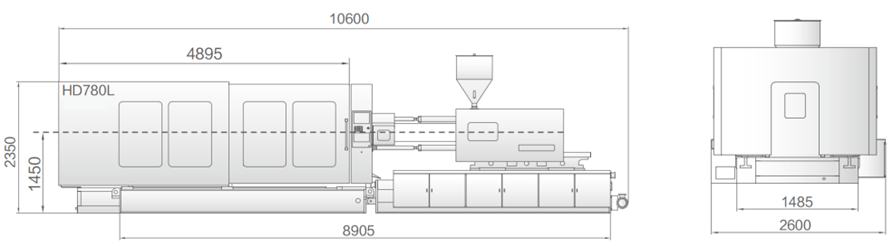

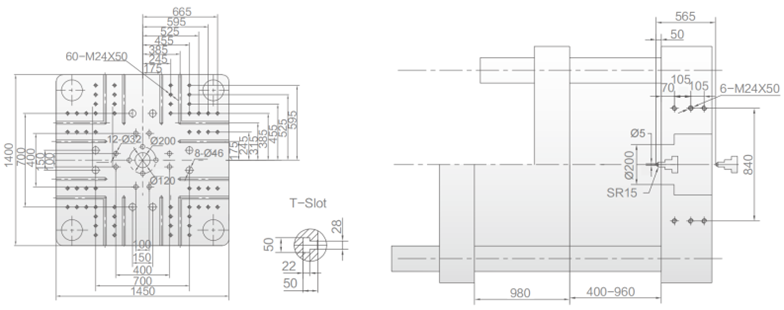

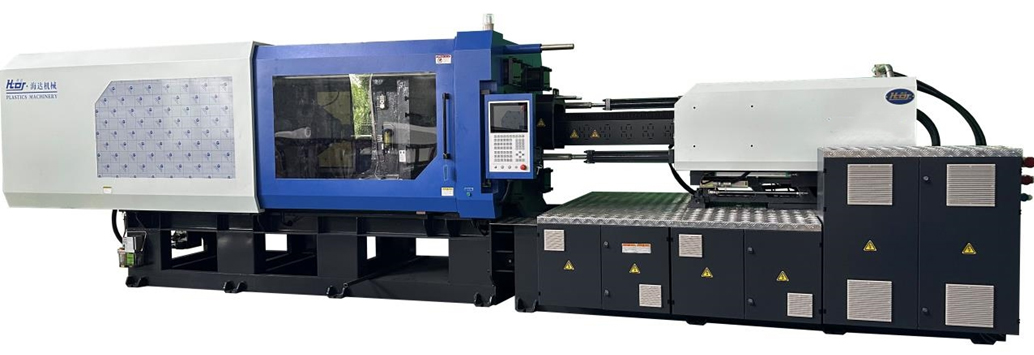

- HD780L
- A: 100 mm
- B: 105 mm
- C: 100 mm
- A: 22.6 L/D
- B: 21.5 L/D
- C: 22.6 L/D
- A: 4006 cm3
- B: 4416 cm3
- C: 4006 cm3
- A: 3645 g
- B: 4019 g
- C: 3645 g
- A: 184 Mpa
- B: 167 Mpa
- C: 184 Mpa

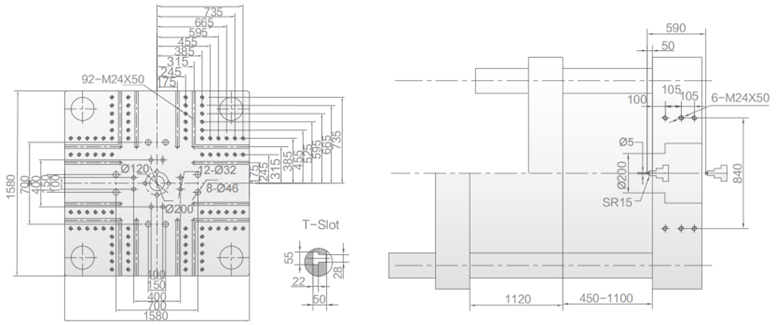

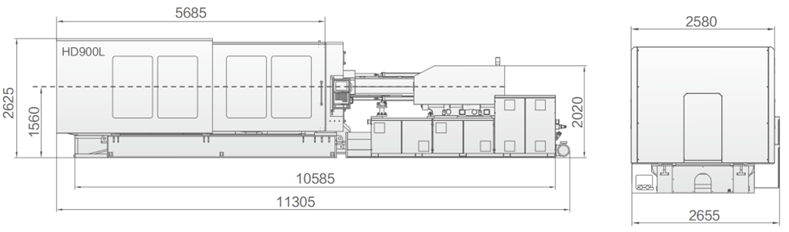

- HD900L
- A: 100 mm
- B: 105 mm
- C: 100 mm
- A: 22.6 L/D
- B: 21.5 L/D
- C: 22.6 L/D
- A: 4006 cm3
- B: 4416 cm3
- C: 4006 cm3
- A: 3645 g
- B: 4019 g
- C: 3645 g
- A: 184 Mpa
- B: 167 Mpa
- C: 184 Mpa

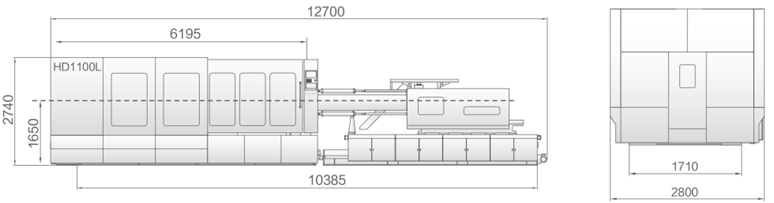

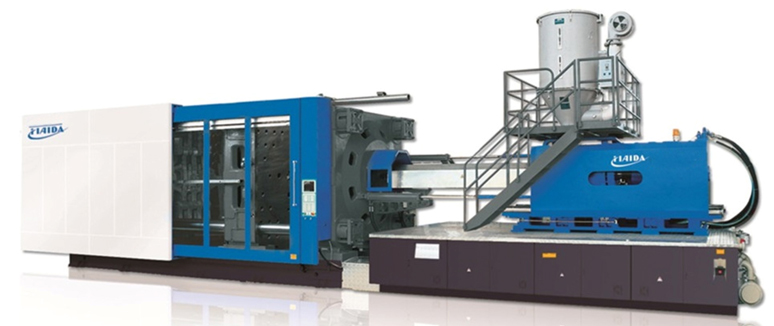

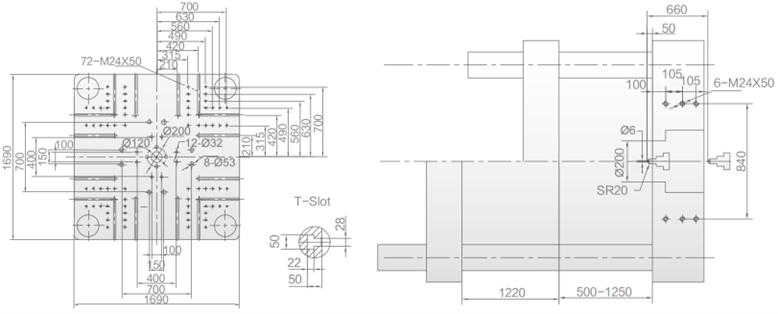

- HD1100L
- A: 110 mm
- B: 120 mm
- C: 110 mm
- A: 22 L/D
- B: 20.2 L/D
- C: 22 L/D
- A: 4942 cm3
- B: 5881 cm3
- C: 4942 cm3
- A: 4497 g
- B: 5352 g
- C: 4497 g
- A: 184 Mpa
- B: 155 Mpa
- C: 184 Mpa

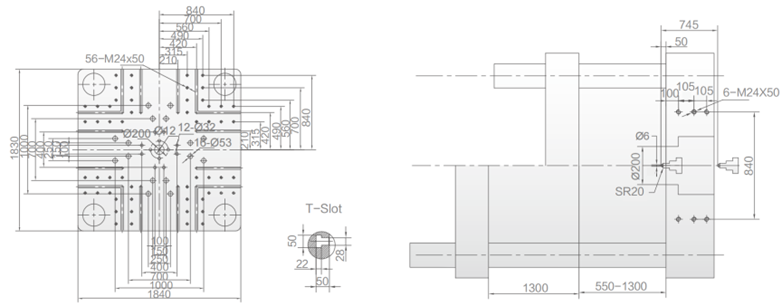

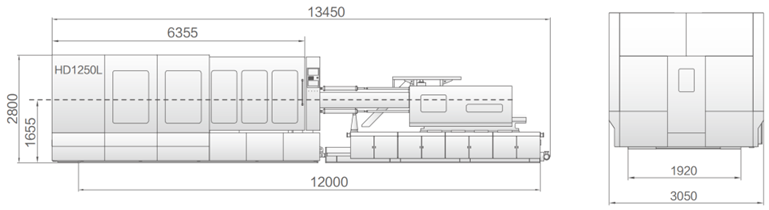

- HD1250L
- A: 120 mm
- B: 130 mm
- C: 120 mm
- A: 24.2 L/D
- B: 22.3 L/D
- C: 24.2 L/D
- A: 6556 cm3
- B: 7694 cm3
- C: 6556 cm3
- A: 5966 g
- B: 7002 g
- C: 5966 g
- A: 179 Mpa
- B: 152 Mpa
- C: 179 Mpa
- HD1400L
- A: 120 mm
- B: 130 mm
- C: 120 mm
- A: 24.2 L/D
- B: 22.3 L/D
- C: 24.2 L/D
- A: 6556 cm3
- B: 7694 cm3
- C: 6556 cm3
- A: 5966 g
- B: 7002 g
- C: 5966 g
- A: 179 Mpa
- B: 152 Mpa
- C: 179 Mpa
- HD1600L
- A: 120 mm
- B: 130 mm
- C: 120 mm
- A: 24.2 L/D
- B: 22.3 L/D
- C: 24.2 L/D
- A: 6556 cm3
- B: 7694 cm3
- C: 6556 cm3
- A: 5966 g
- B: 7002 g
- C: 5966 g
- A: 179 Mpa
- B: 152 Mpa
- C: 179 Mpa
- HD2000L-I
- A: 120 mm
- B: 130 mm
- C: 120 mm
- A: 24.2 L/D
- B: 22.3 L/D
- C: 24.2 L/D
- A: 6556 cm3
- B: 7694 cm3
- C: 6556 cm3
- A: 5966 g
- B: 7002 g
- C: 5966 g
- A: 179 Mpa
- B: 152 Mpa
- C: 179 Mpa
- HD2000L-II
- A: 120 mm
- B: 130 mm
- C: 120 mm
- A: 24.2 L/D
- B: 22.3 L/D
- C: 24.2 L/D
- A: 6556 cm3
- B: 7694 cm3
- C: 6556 cm3
- A: 5966 g
- B: 7002 g
- C: 5966 g
- A: 179 Mpa
- B: 152 Mpa
- C: 179 Mpa
- HD2500L
- A: 120 mm
- B: 130 mm
- C: 120 mm
- A: 24.2 L/D
- B: 22.3 L/D
- C: 24.2 L/D
- A: 6556 cm3
- B: 7694 cm3
- C: 6556 cm3
- A: 5966 g
- B: 7002 g
- C: 5966 g
- A: 179 Mpa
- B: 152 Mpa
- C: 179 Mpa
- HD2800L
- A: 120 mm
- B: 130 mm
- C: 120 mm
- A: 24.2 L/D
- B: 22.3 L/D
- C: 24.2 L/D
- A: 6556 cm3
- B: 7694 cm3
- C: 6556 cm3
- A: 5966 g
- B: 7002 g
- C: 5966 g
- A: 179 Mpa
- B: 152 Mpa
- C: 179 Mpa
- HD3300L
- A: 120 mm
- B: 130 mm
- C: 120 mm
- A: 24.2 L/D
- B: 22.3 L/D
- C: 24.2 L/D
- A: 6556 cm3
- B: 7694 cm3
- C: 6556 cm3
- A: 5966 g
- B: 7002 g
- C: 5966 g
- A: 179 Mpa
- B: 152 Mpa
- C: 179 Mpa
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 1000 kN
Opening Stroke: 330 mm
Mould Thickness(Min-Max): 140-380 mm
Space Between Tie-Bars: 370 x 370 mm
Hydraulic Ejection: 31.4 KN
Ejector Stroke: 100 mm
General
Motor Power: 11 kW
Heater: 7.5 kW
System Pressure: 16 Mpa

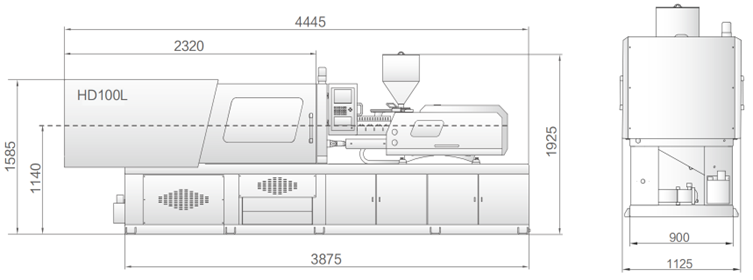

Machine Dimension: 4.45 x 1.12 x 1.93 m
Machine Weight: 3 t
Mould Orientation Ring Diameter: Φ125 mm
Nozzle Radius: SR10 mm
Get a quote for HD100L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 1300 kN
Opening Stroke: 380 mm
Mould Thickness(Min-Max): 150-450 mm
Space Between Tie-Bars: 420 x 420 mm
Hydraulic Ejection: 45 KN
Ejector Stroke: 130 mm
General
Motor Power: 16 kW
Heater: 9.5 kW
System Pressure: 16 Mpa
Machine Dimension: 4.85 x 1.12 x 2 m
Machine Weight: 4.3 t
Mould Orientation Ring Diameter: Φ100 mm
Nozzle Radius: SR10 mm
Get a quote for HD130L today!

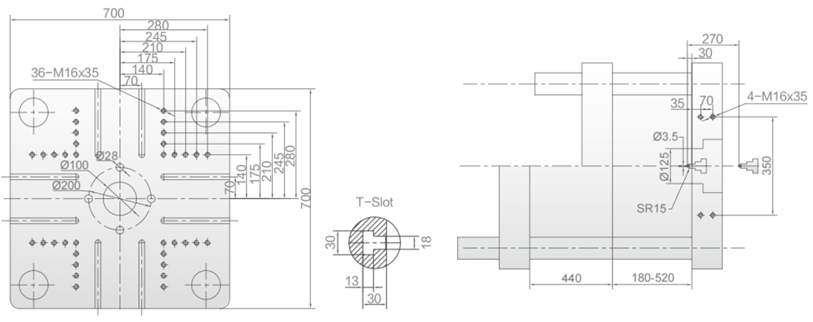

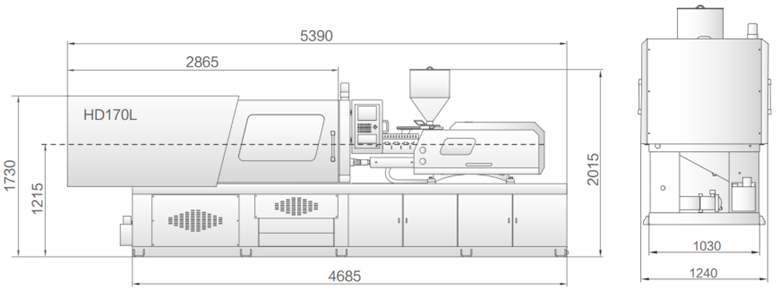

Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 1700 kN
Opening Stroke: 440 mm
Mould Thickness(Min-Max): 180-520 mm
Space Between Tie-Bars: 470 x 470 mm
Hydraulic Ejection: 45 KN
Ejector Stroke: 140 mm
General
Motor Power: 15 kW
Heater: 11 kW
System Pressure: 16 Mpa
Machine Dimension: 5.4 x 1.3 x 2.1 m
Machine Weight: 5.4 t
Mould Orientation Ring Diameter: Φ125 mm
Nozzle Radius: SR15 mm
Get a quote for HD170L today!

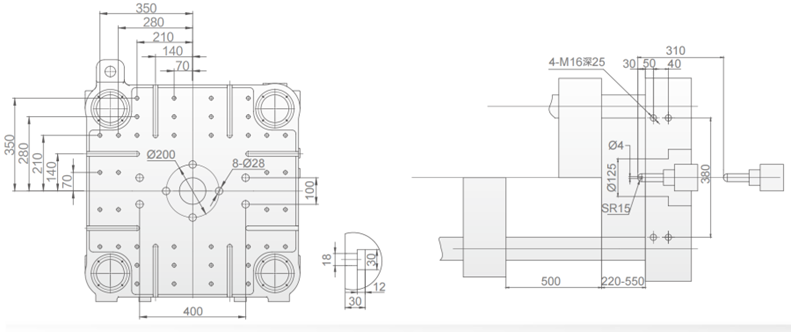

Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 2100 kN
Opening Stroke: 500 mm
Mould Thickness(Min-Max): 200-550 mm
Space Between Tie-Bars: 530 x 530 mm
Hydraulic Ejection: 70 KN
Ejector Stroke: 165 mm
General
Motor Power: 22 kW
Heater: 12.6 kW
System Pressure: 16 Mpa
Machine Dimension: 5.9 x 1.5 x 2.23 m
Machine Weight: 7.7 t
Mould Orientation Ring Diameter: Φ125 mm
Nozzle Radius: SR15 mm
Get a quote for HD210L today!

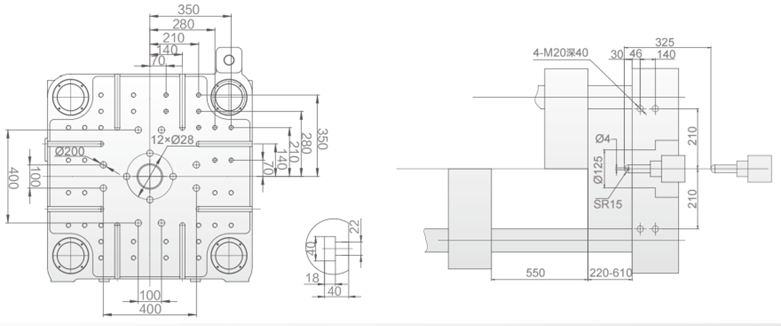

Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 2600 kN
Opening Stroke: 550 mm
Mould Thickness(Min-Max): 220-610 mm
Space Between Tie-Bars: 580 x 580 mm
Hydraulic Ejection: 70 KN
Ejector Stroke: 165 mm
General
Motor Power: 30 kW
Heater: 15.6 kW
System Pressure: 16 Mpa
Machine Dimension: 6.6 x 1.6 x 2.35 m
Machine Weight: 9.4 t
Mould Orientation Ring Diameter: Φ125 mm
Nozzle Radius: SR15 mm
Get a quote for HD260L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 2900 kN
Opening Stroke: 610 mm
Mould Thickness(Min-Max): 230-630 mm
Space Between Tie-Bars: 630 x 630 mm
Hydraulic Ejection: 70 KN
Ejector Stroke: 165 mm
General
Motor Power: 34 kW
Heater: 19 kW
System Pressure: 16 Mpa
Machine Dimension: 6.75 x 1.6 x 2.35 m
Machine Weight: 10.6 t
Mould Orientation Ring Diameter: Φ125 mm
Nozzle Radius: SR15 mm
Get a quote for HD290L today!

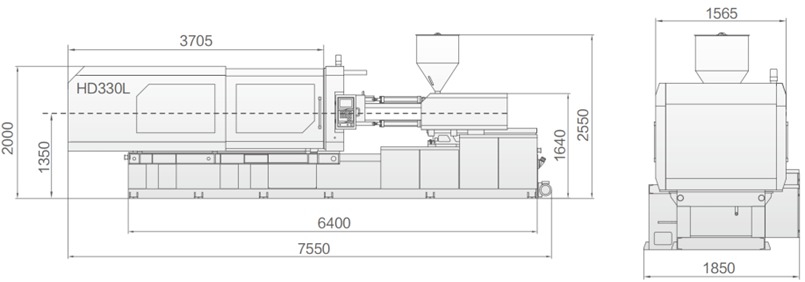

Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 3300 kN
Opening Stroke: 660 mm
Mould Thickness(Min-Max): 250-680 mm
Space Between Tie-Bars: 680 x 680 mm
Hydraulic Ejection: 91 KN
Ejector Stroke: 170 mm
General
Motor Power: 37 kW
Heater: 23.3 kW
System Pressure: 16 Mpa
Machine Dimension: 7.4 x 1.9 x 2.5 m
Machine Weight: 13 t
Mould Orientation Ring Diameter: Φ125 mm
Nozzle Radius: SR15 mm
Get a quote for HD330L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 3900 kN
Opening Stroke: 710 mm
Mould Thickness(Min-Max): 280-750 mm
Space Between Tie-Bars: 730 x 730 mm
Hydraulic Ejection: 126 KN
Ejector Stroke: 200 mm
General
Motor Power: 45 kW
Heater: 28.2 kW
System Pressure: 16 Mpa
Machine Dimension: 7.95 x 1.95 x 2.6 m
Machine Weight: 15.2 t
Mould Orientation Ring Diameter: Φ160 mm
Nozzle Radius: SR15 mm
Get a quote for HD390L today!

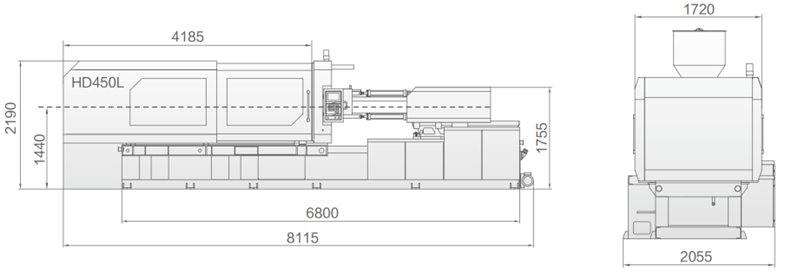

Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 4500 kN
Opening Stroke: 780 mm
Mould Thickness(Min-Max): 300-780 mm
Space Between Tie-Bars: 780 x 780 mm
Hydraulic Ejection: 126 KN
Ejector Stroke: 200 mm
General
Motor Power: 45 kW
Heater: 30 kW
System Pressure: 16 Mpa
Machine Dimension: 8.15 x 2.2 x 2.2 m
Machine Weight: 19.7 t
Mould Orientation Ring Diameter: Φ160 mm
Nozzle Radius: SR15 mm
Get a quote for HD450L today!

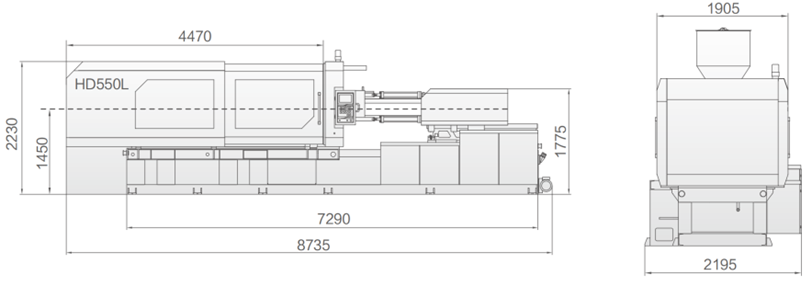

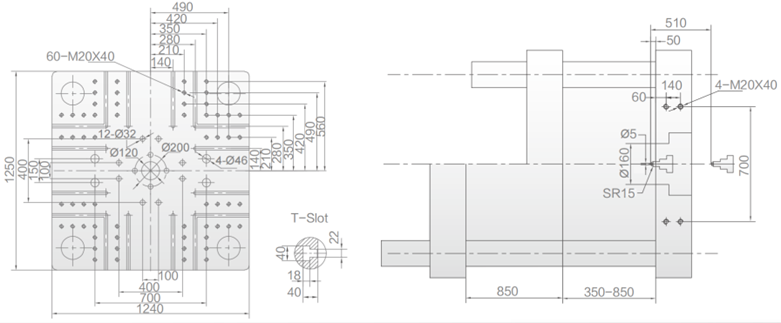

Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 5500 kN
Opening Stroke: 850 mm
Mould Thickness(Min-Max): 350-850 mm
Space Between Tie-Bars: 840 x 830 mm
Hydraulic Ejection: 181 KN
Ejector Stroke: 220 mm
General
Motor Power: 55 kW
Heater: 31.5 kW
System Pressure: 16 Mpa
Machine Dimension: 8.82 x 2.25 x 2.42 m
Machine Weight: 22.8 t
Mould Orientation Ring Diameter: Φ160 mm
Nozzle Radius: SR15 mm
Get a quote for HD550L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 6000 kN
Opening Stroke: 900 mm
Mould Thickness(Min-Max): 380-880 mm
Space Between Tie-Bars: 890 x 880 mm
Hydraulic Ejection: 181 KN
Ejector Stroke: 240 mm
General
Motor Power: 60 kW
Heater: 32.5 kW
System Pressure: 16 Mpa
Machine Dimension: 9.02 x 2.3 x 2.26 m
Machine Weight: 24.9 t
Mould Orientation Ring Diameter: Φ160 mm
Nozzle Radius: SR15 mm
Get a quote for HD600L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 6800 kN
Opening Stroke: 940 mm
Mould Thickness(Min-Max): 390-900 mm
Space Between Tie-Bars: 940 x 920 mm
Hydraulic Ejection: 181 KN
Ejector Stroke: 260 mm
General
Motor Power: 37*2 kW
Heater: 36 kW
System Pressure: 16 Mpa
Machine Dimension: 9.55 x 2.25 x 2.48 m
Machine Weight: 28.5 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD680L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 7800 kN
Opening Stroke: 980 mm
Mould Thickness(Min-Max): 400-960 mm
Space Between Tie-Bars: 980 x 960 mm
Hydraulic Ejection: 212 KN
Ejector Stroke: 270 mm
General
Motor Power: 45*45 kW
Heater: 52 kW
System Pressure: 16 Mpa
Machine Dimension: 10.6 x 2.6 x 2.4 m
Machine Weight: 37.8 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD780L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 9000 kN
Opening Stroke: 1120 mm
Mould Thickness(Min-Max): 450-1100 mm
Space Between Tie-Bars: 1090 x 1090 mm
Hydraulic Ejection: 246 KN
Ejector Stroke: 300 mm
General
Motor Power: 45*45 kW
Heater: 56 kW
System Pressure: 16 Mpa
Machine Dimension: 11.71 x 2.82 x 2.7 m
Machine Weight: 49 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD900L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 11000 kN
Opening Stroke: 1220 mm
Mould Thickness(Min-Max): 500-1250 mm
Space Between Tie-Bars: 1160 x 1160 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 325 mm
General
Motor Power: 55*2 kW
Heater: 58 kW
System Pressure: 16 Mpa
Machine Dimension: 12.7 x 2.8 x 2.75 m
Machine Weight: 61.5 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD1100L today!
Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 12500 kN
Opening Stroke: 1300 mm
Mould Thickness(Min-Max): 550-1300 mm
Space Between Tie-Bars: 1260 x 1260 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 350 mm
General
Motor Power: 60*2 kW
Heater: 78.3 kW
System Pressure: 16 Mpa
Machine Dimension: 13.45 x 3.05 x 2.8 m
Machine Weight: 70 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD1250L today!Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 12500 kN
Opening Stroke: 1300 mm
Mould Thickness(Min-Max): 550-1300 mm
Space Between Tie-Bars: 1260 x 1260 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 350 mm
General
Motor Power: 60*2 kW
Heater: 78.3 kW
System Pressure: 16 Mpa
Machine Dimension: 13.45 x 3.05 x 2.8 m
Machine Weight: 70 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD1400L today!Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 12500 kN
Opening Stroke: 1300 mm
Mould Thickness(Min-Max): 550-1300 mm
Space Between Tie-Bars: 1260 x 1260 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 350 mm
General
Motor Power: 60*2 kW
Heater: 78.3 kW
System Pressure: 16 Mpa
Machine Dimension: 13.45 x 3.05 x 2.8 m
Machine Weight: 70 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD1600L today!Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 12500 kN
Opening Stroke: 1300 mm
Mould Thickness(Min-Max): 550-1300 mm
Space Between Tie-Bars: 1260 x 1260 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 350 mm
General
Motor Power: 60*2 kW
Heater: 78.3 kW
System Pressure: 16 Mpa
Machine Dimension: 13.45 x 3.05 x 2.8 m
Machine Weight: 70 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD2000L-I today!Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 12500 kN
Opening Stroke: 1300 mm
Mould Thickness(Min-Max): 550-1300 mm
Space Between Tie-Bars: 1260 x 1260 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 350 mm
General
Motor Power: 60*2 kW
Heater: 78.3 kW
System Pressure: 16 Mpa
Machine Dimension: 13.45 x 3.05 x 2.8 m
Machine Weight: 70 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD2000L-II today!Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 12500 kN
Opening Stroke: 1300 mm
Mould Thickness(Min-Max): 550-1300 mm
Space Between Tie-Bars: 1260 x 1260 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 350 mm
General
Motor Power: 60*2 kW
Heater: 78.3 kW
System Pressure: 16 Mpa
Machine Dimension: 13.45 x 3.05 x 2.8 m
Machine Weight: 70 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD2500L today!Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 12500 kN
Opening Stroke: 1300 mm
Mould Thickness(Min-Max): 550-1300 mm
Space Between Tie-Bars: 1260 x 1260 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 350 mm
General
Motor Power: 60*2 kW
Heater: 78.3 kW
System Pressure: 16 Mpa
Machine Dimension: 13.45 x 3.05 x 2.8 m
Machine Weight: 70 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD2800L today!Injection Unit
Screw Diameter
Screw L/D Ratio
Injection Volume
Shot Weight
Injection Pressure
Clamping Unit
Clamping Force: 12500 kN
Opening Stroke: 1300 mm
Mould Thickness(Min-Max): 550-1300 mm
Space Between Tie-Bars: 1260 x 1260 mm
Hydraulic Ejection: 282.6 KN
Ejector Stroke: 350 mm
General
Motor Power: 60*2 kW
Heater: 78.3 kW
System Pressure: 16 Mpa
Machine Dimension: 13.45 x 3.05 x 2.8 m
Machine Weight: 70 t
Mould Orientation Ring Diameter: Φ200 mm
Nozzle Radius: SR20 mm
Get a quote for HD3300L today!
